Earth clamps unlike any others...

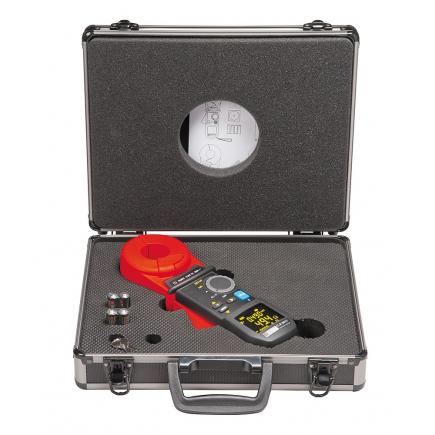

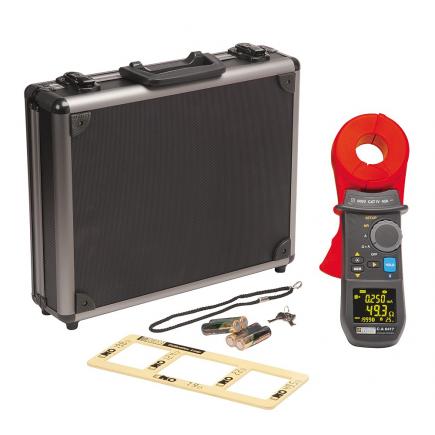

The C.A 6417 earth clamps, delivered in a carrying case, are ideal for quick earth-loop resistance measurements. 600V CAT IV, they display the earth voltage with a dangerous voltage alarm and provide additional safety during measurement.

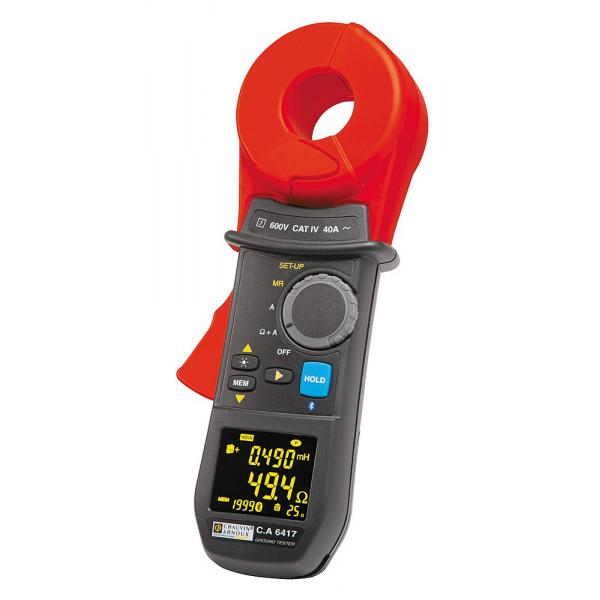

They are particularly easy to use thanks to ergonomic innovations such as a force compensation system to keep the clamp open without any effort and an OLED display, offering visibility over an angle of 180° whatever the lighting conditions.
The automatic PRE-HOLD function when the clamp is opened and the automatic jaw calibration function at power-up help to optimize processing of the measurements provided by the clamps.

On the same screen, they offer simultaneous display of:
The impedance and leakage current (Ω+A)
The earth voltage
The breakdown of the resistive and inductive parts of the ground impedance

They also allow users to display the impedance transposed to a frequency close to the network frequency, thus reducing measurement errors when low values are involved.
Equipped with Bluetooth communication, the C.A 6417 clamp can be used with the GTC and/or DATAVIEW® PC software to view the values in real time, recover the measurements and create standard or customized measurement reports.
There is also an ANDROID application for tablets & smartphones for viewing real-time graphs, GPS geolocation of the measurements and email distribution of the measurements with graphs, comments and photos.
