AC and DC measurements
Power and energy measurements
Decomposition of harmonic orders
Measurement recorder

Description:

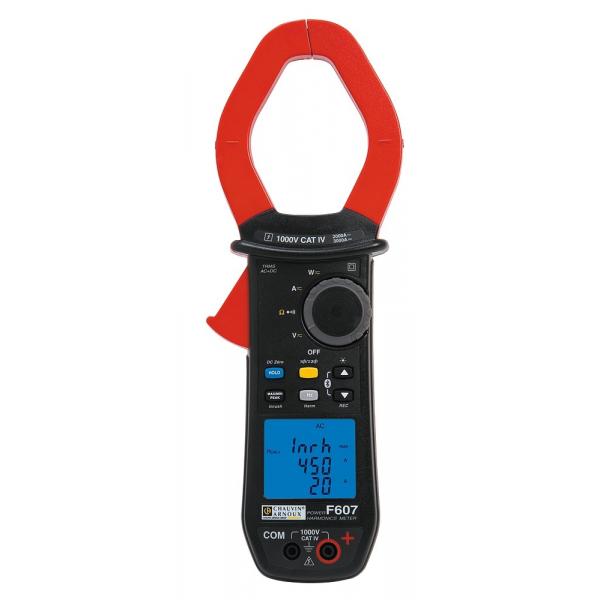

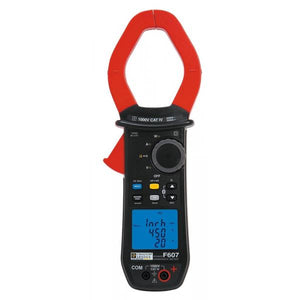

With its 60 mm clamping diameter and current measurements up to 3000A, the F607 clamp is ideal for low-voltage electrical power distribution and transmission applications.
Equipped with a fast 12-bit TRMS digital acquisition system, F607 clamps offer particularly accurate measurements.
Due to their large bandwidth and high crest factor, these clamps guarantee accurate measurements whatever the type of signal.
Automatic AC/DC detection is a standard feature on all the models in this range, as is IP54 protection.
The large backlit 10,000-count triple display makes it easy to read in all circumstances.
The fact that each rotary-switch position corresponds to a single function means that it is simple to use.
Principal applications: maintenance, testing, monitoring, diagnostics, sizing, connection, etc.


AC voltage (TRMS): from 0,15 to 1000V (1400 peak)
Automatic AC/DC survey: Yes
Autorange: Yes
Bandwidth V / A-W: from 10 Hz to 3 kHz / from 10 Hz to 1 kHz - 2000A
Clamping Ø: 60 mm
Current (TRMS) AC: from 0,15 to 2000A (3000A peak)
Current (TRMS) AC+DC: from 0,15 to 2000A (3000A peak)
Current (TRMS) DC: from 0,15 to 3000A
Diode test: Yes
Frequency: V: from 5 Hz to 20 kHz; I: from 5 Hz to 1 kHz
Power (single and three-phase): active, reactive, apparent, FP, DPF
Readout: Backlit LCD, 10000 counts
Resistence: from 0,1Ω to 100kΩ
Size: TRMS AC, DC, AC+DC
Sound continuity: Yes
Voltage (TRMS) AC+DC: from 0,15 to 1000V (1400V)
Voltage (TRMS) DC: from 0,15 to 1400V
