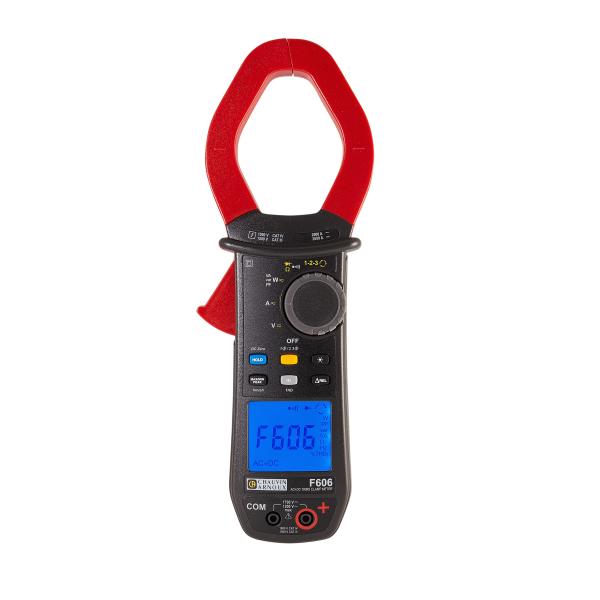

The F606 digital multimeter clamp is part of the F600 series and meets the measurement needs of low voltage electrical systems with a high protection index.
Particularly suitable for maintenance, control, monitoring and diagnosis of plants with strong currents.
Equipped with a fast digital acquisition system TRMS (AC, AC+DC) / DC, 12 bit.
The F605 offers a very precise measurement regardless of the signal shape.

Technical characteristics
Clamping diameter 60 mm
Current 2,000 A AC / 3000 A DC
AC voltage: 1.200V and DC 1.700V
Resistance and sound continuity
Active power, reactive, apparent, PF, THDf / THDr
Rotation of phases
Automatic AC/DC recognition
TrueInrush current measurement
Hold, Min, Max, diode test and auto-off, Peak+, Peak-
Differential and realtive measures
Electrical safety: EN 61010 1.000V Cat.IV and 1500V Cat.III
Degree of protection: IP54.


Weight (Kg): 1,165
