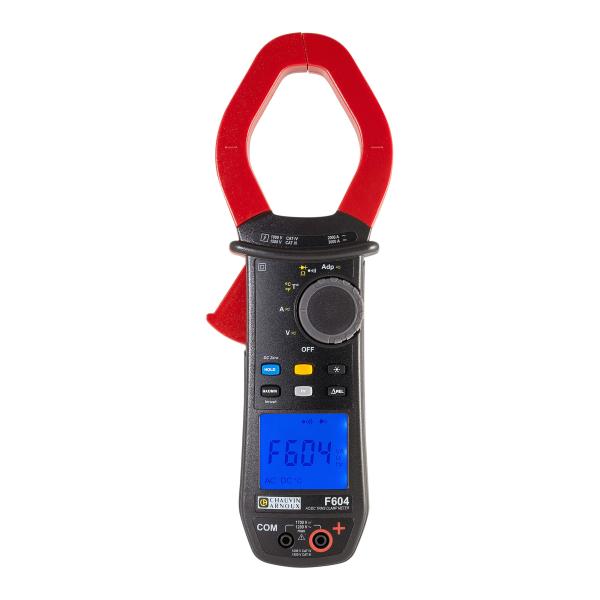

The F604 digital multimeter clamp is part of the F600 series and meets the measurement needs of low voltage electrical systems with a high protection index.
Particularly suitable for maintenance, control, monitoring and diagnosis of plants with strong currents.
Equipped with a fast 12-bit TRMS digital capture system, the F604 offers very precise measurement regardless of signal shape.

Technical characteristics
Clamping diameter: 60 mm
AC current: 2,000A AC and DC: 3,000A DC
AC voltage: 1.200V and DC 1.700V
Resistance and sound continuity
Temperature
Automatic AC/DC recognition
TrueInrush current measurement
Hold, Min, Max, diode test and automatic shutdown
Differential and relative measures
Electrical safety: EN 61010 1.000V Cat.IV and 1.500 V Cat.III
Degree of protection: IP54


Weight (Kg): 1,165
