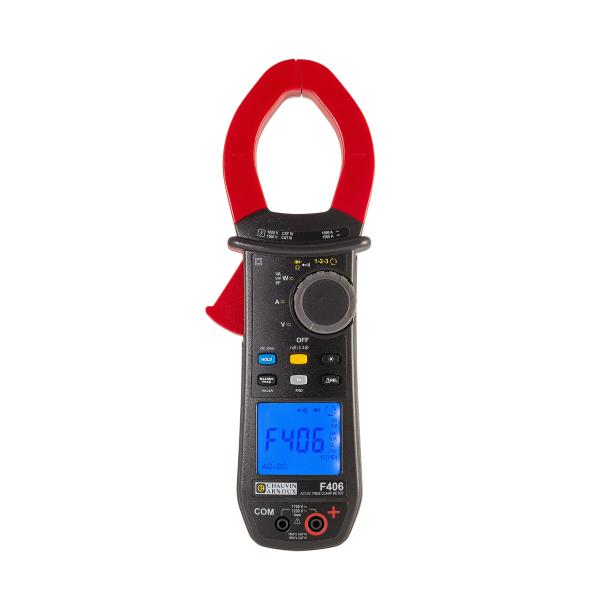

The F406 digital multimeter clamp is part of the F400 series and meets the measurement needs of low voltage electrical systems with a high protection index.
Particularly suitable for maintenance, control, monitoring and diagnosis of medium power plants.
Equipped with a fast 12-bit TRMS digital capture system.

Technical characteristics
Clamping diameter: 48 mm
Current : 1,000 ACA / 1,500 ADC
AC voltage: 1.200V and DC 1.700V
Power (W, var, VA, PF) and harmonic distortions (THDf, THDr)
Rotation of phases "2-wire method"
Relative (ΔX) and differential (ΔX/X) measurements
Resistance and sound continuity
Diode test
Automatic AC/DC recognition
TrueInrush current measurement
Hold, Min, Max, diode test and automatic shutdown
Electrical safety: EN 61010 1.000V Cat.IV and 1.500V Cat.III
Degree of protection: IP54


Weight (Kg): 1,15
