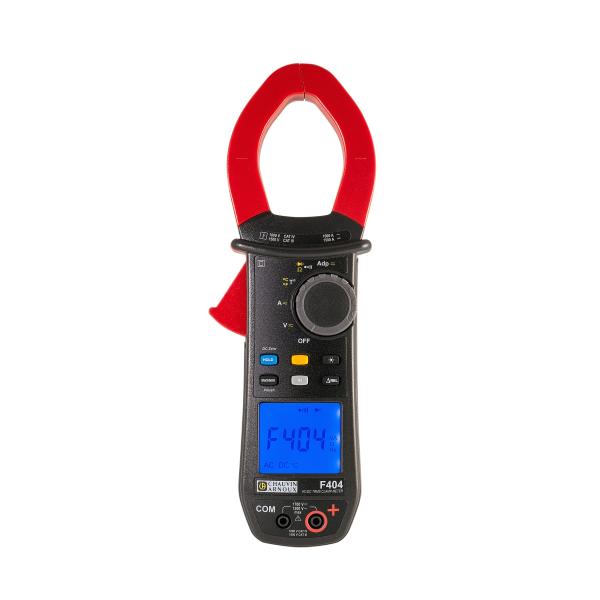

The F404 digital multimeter clamp is part of the F400 series and meets the measurement needs of low voltage electrical systems with a high protection index.
Particularly suitable for maintenance, control, monitoring and diagnosis of medium power plants.
Equipped with a fast 12-bit TRMS digital capture system, the F404 offers very precise measurement regardless of signal shape.

Technical characteristics
Clamping diameter: 48 mm
Current: 1.000A AC / 1.500A DC
AC voltage: 1.200V and DC: 1.700V
Resistance and sound continuity
Temperature
Automatic AC/DC recognition
TrueInrush current measurement
Hold, Min, Max, diode test and automatic shutdown
Relative differential measures
Electrical safety: EN 61010 1.000V Cat.IV and 1.500V Cat.III
Degree of protection: IP54

• Weight (Kg): 1,135
