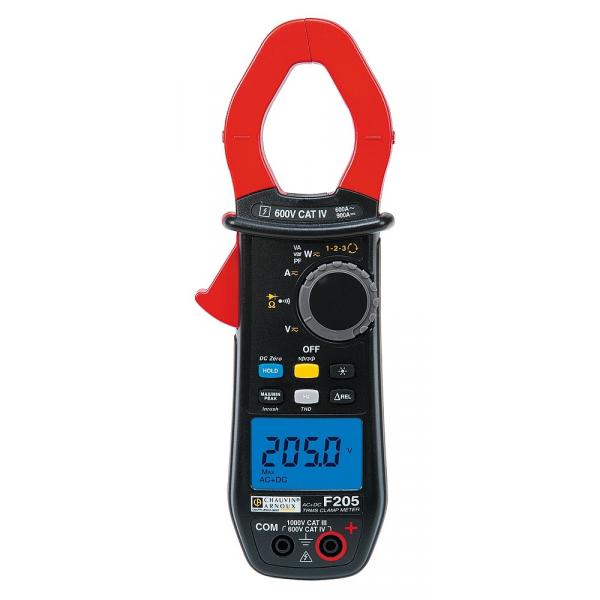

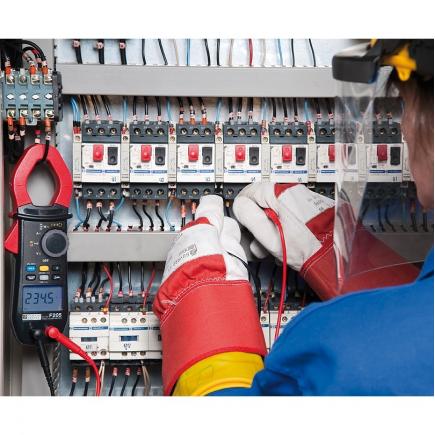

The F205 clamp is ideal for low and medium-power Low-Voltage applications, maintenance of tertiary or industrial electrical installations and troubleshooting and sizing of electrical power supplies.
Equipped with a fast 12-bit TRMS digital acquisition system, F205 clamps offer particularly accurate measurements whatever the signal's type and waveform.


AC / DC voltage: from 0,15 to 1000 V
AC current: from 0,15 to 600 A (900 A peak)
AC/DC car survey: Yes
AC+DC current: from 0,15 to 600 A (900 A peak)
AC+DC voltage: from 0,15 to 1000 V
Accuracy: 1%L + 3 counts
Active Power: from 1 W to 600 kW
Apparent Power: from 1 VA to 600 kVA
Clamping Ø: 34 mm
DC current: from 0,15 to 900 A peak
Frequency: current: from 5,0 Hz to 3000 Hz / voltage: from 5,0 Hz to 20,00 kHz
Reactive Power: from 1 var to 600 kvar
Readout: LCD with backlight
Resistance / Voltage in open circuit: ≤ 8 V
Resolution: 6000 counts
Size: TRMS (AC,AC+DC)/DC
