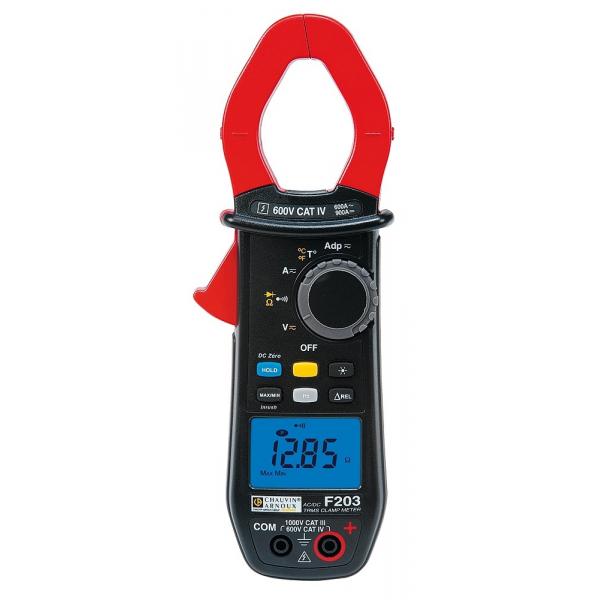

The F203 clamp is ideal for the needs of both self-employed electricians and SME contractors in the electrical sector.
Equipped with a fast 12-bit TRMS digital acquisition system, F203 clamps offer particularly accurate measurements whatever the signal's type and waveform.


AC / DC voltage: from 0,15 to 1000 V
AC current: from 0,15 to 600 A (900 A peak)
AC/DC car survey: Yes
Accuracy: 1%L + 3 counts
Clamping Ø: 34 mm
DC current: from 0,15 to 900 A peak
Frequency: current: from 5,0 Hz to 3000 Hz / voltage: from 5,0 Hz to 20,00 kHz
Other functions: True InRush, autorange, Hold, Min, Max, diode test, automatic shutdown
Power supply: 1 x 9V LF22
Readout: LCD with backlight
Resistance Voltage in open circuit: ≤ 8 V
Resolution: 6000 counts
Safety EN 61010: 600 V CAT IV
Size: TRMS (AC)/DC
Sound continuity: Yes, adjustable from 1 to 599 Ω
Temperature (type K): from -60°C to 1000°C
