The MiniFlex® MA110 Series comprises 3 flexible sensors which can be connected directly to any multimeter, wattmeter, logger, etc.
These flexible coils offer the following major advantages:

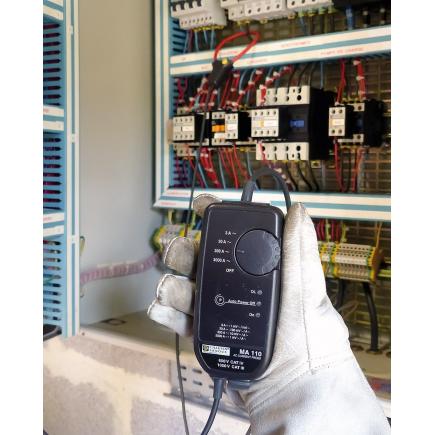

Current measurement even in places where access is difficult
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for wattmetric measurements


Current very low / low / medium / high: 0.08 A - 3 A / 0.5 A - 30 A / 0.5 A - 300 A / 0.5 A - 3000 A
Transformation ratio (input/output): 1 V/A 100 mV/A 10 mV/A 1 mV/A
Typical accuracy: ≤ 1 %
Voltage: 3 VAC
