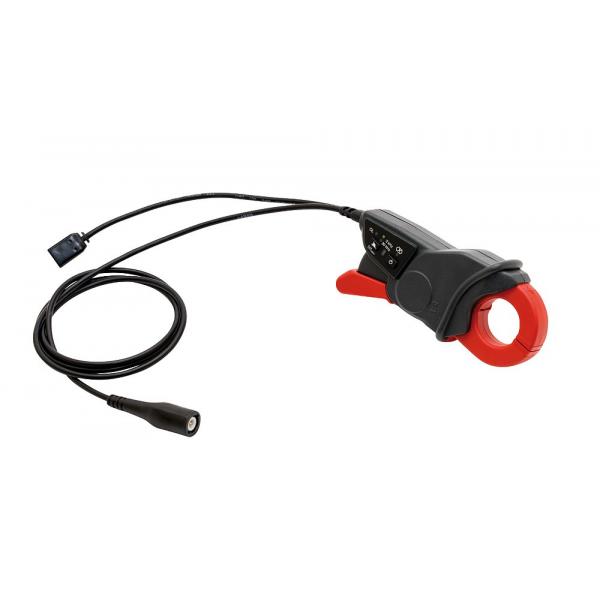

The MH60 sensor is designed for use with an oscilloscope in total simplicity. Simply clamp the cable and measure. It can be used for wide-band current measurements up to 100 A.
The compact MH60 offers a clamping diameter of 26 mm and can be used in numerous sectors of activity: power electronics, automotive sector, electrical equipment manufacturers, etc.
The built-in cable with µUSB connection technology means the MH60 can be self-powered directly from the oscilloscope or mains-powered via a mains adapter. It is also equipped with an internal NiMh rechargeable battery with a battery life of approximately 8 hours.


Current low / medium: 0.01 A - 140 A Peak
Transformation ratio (input/output): 10 mV/A
Typical accuracy: ≤ 1.5%
Voltage: 1.4 VPEA
