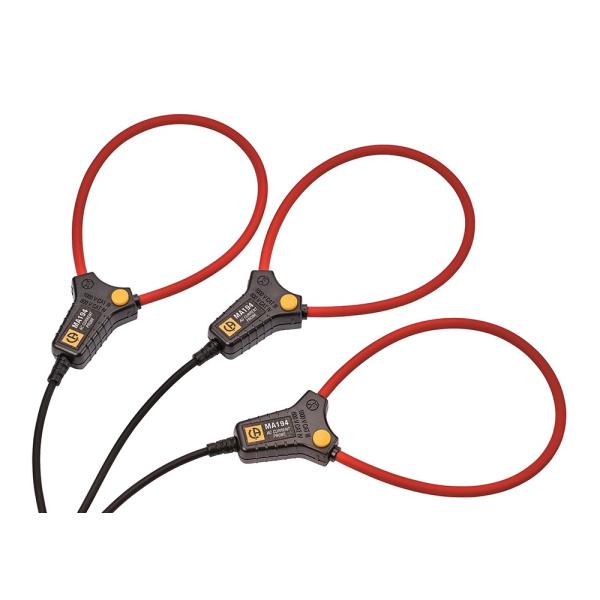

MiniFlex® current clamps and flexible current sensors allow you to measure the current flowing in a cable without having to open the circuit.
They also allow the user to be isolated from the dangerous voltages present in the circuit.

MiniFlex® MA194 250mm
Measuring range 100 mA - 10 000 A
Clamping diameter 70mm
Dimensions (L x W x H) approx. 130 x 80 x 18 mm
Cable length: 3 meters
Mass about 110 g

MiniFlex® MA194 350mm
Measuring range 100 mA - 10 000 A
Clamping diameter 100mm
Dimensions (L x W x H) approx. 170 x 110 x 18 mm
Cable length: 3 meters
Mass about 120 g

MiniFlex® MA194 1000mm
Measuring range 100 mA - 10 000 A
Clamping diameter 320mm
Dimensions (L x W x H) approx. 370 x 320 x 18 mm
Cable length: 3 meters
Mass about 160 g
