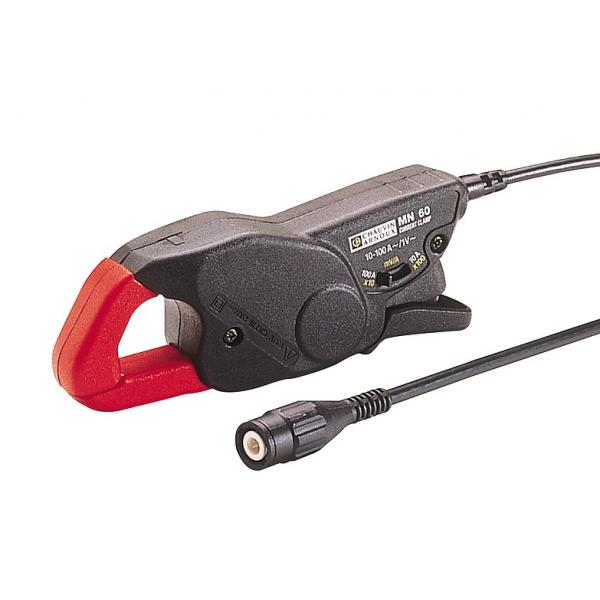

The MN Series is a range of versatile transformer clamps for measuringalternating currents up to 240 A with a multimeter or a power analyser.
Compact and ergonomic, the jaw is suitable for measurements in placeswhere access is difficult and can also be used to clamp any cable up to 20 mm in diameter ininstallations up to CAT III 600 V or CAT IV 300 V.
When used with an oscilloscope, this isolated current sensor offers 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak currents up to 600 A.


Current low / medium: 0.1 A - 60 A / 0.5 A - 600 A
Transformation ratio (input/output): 1 A / 100 mV 1 A / 10 mV
Typical accuracy: ≤ 2 % ≤ 1.5 %
Voltage: 6 VPEAK
