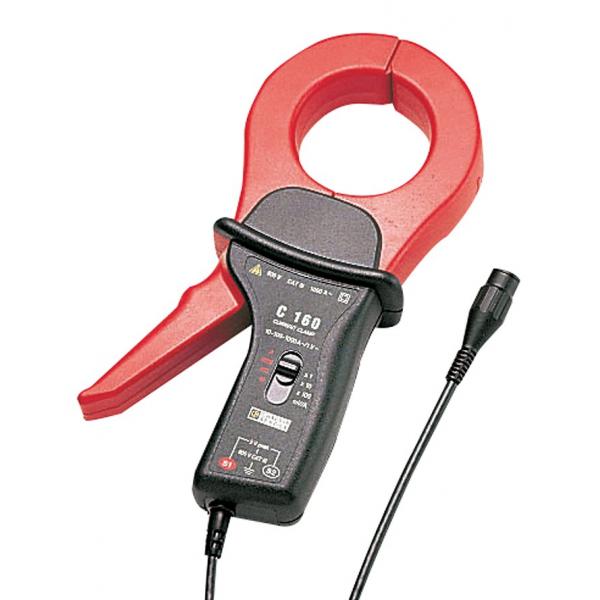

The C Series is a range of high-performance 1000 A transformer clamps.
The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Its ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations.
When used with an oscilloscope, this isolated current sensor offers 3 sensitivities and can be used to view currents with a bandwidth of up to 100 kHz.


Current low / medium: 0.1 A - 30 A / 0.1 A - 300 A / 1 A - 2000 A
Transformation ratio (input/output): 10 A / 1 V 100 A / 1 V 1000 A / 1 V
Typical accuracy: ≤ 3 % ≤ 2 % ≤ 1 %
Voltage: 3 V 3 V 2 V
