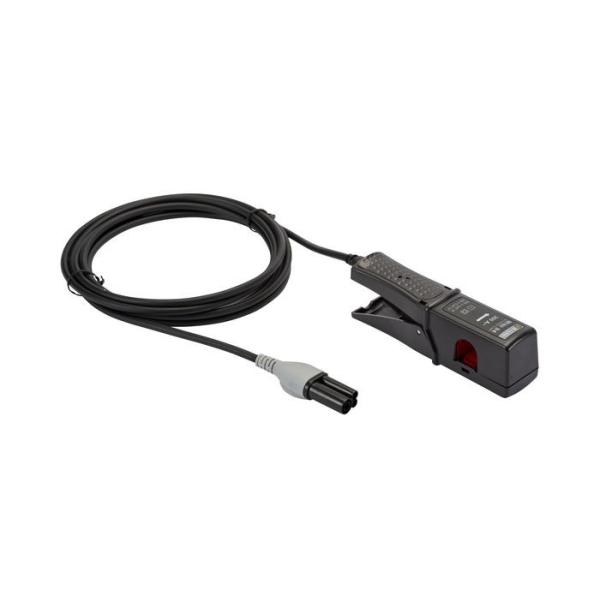

The MINI 94 clamp is an amperometric clamp which allows the measurement of alternating current without intervention on the installation (no interruption of the current to be measured).

The MINI 94 is a clamp for measuring currents from industrial frequencies up to 200 A with an accuracy class of 0.2.
Its excellent accuracy characteristics (gain and phase) make it particularly suitable for current measurements with power and energy analyzers.
Therefore it can be used to check energy meters.
Its specificity: the output signal cable has a 4-point overmolded connector, compatible with the latest generation Chauvin Arnoux Class A Qualistars and other power and energy recorders.
The specific connector allows an automatic feedback of the clamp by means of the instrument.

• Current capacity: 50 mA 200 AAC
• Operation from 48Hz to 65Hz
• Clamping diameter: 16 mm
• IEC 61010 CAT III-600V / CAT IV-300V
• Dimensions: 130.4 x 46 x 34mm
• Weight: 250g
• Cable length 3 m
