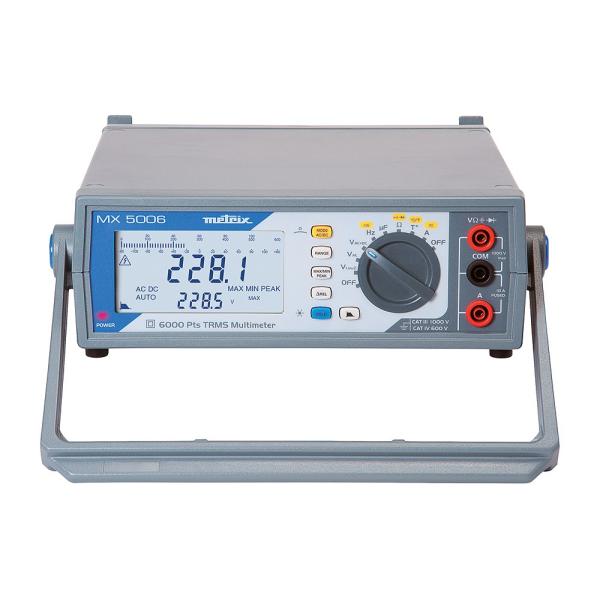

MX5006 6,000-count benchtop multimeter. Simple and effective for laboratory use.
6,000-dot display. Current measurement, single input up to 10A. TRMS AC+DC measurements.
Bandwidth: 100kHz. Low impedance voltage measurements Vlowz.
Established measurements on electric drives (30kHz low-pass filter).
Recording and monitoring of Min, Max and Peak values.
Complies with EN61010-1 (2001) standard.
EMC compliant according to EN61326-1.
Electrical safety 1.000V CAT. III double insulation.

Complementary features:
• Frequency up to 60kHz
• Resistance up to 60MΩ
• Capacitance: from 6nF to 60mF
• Temperature (K thermocouple): from -200°C to +1200°C
• USB communication with SCPI protocol and PC analysis software "SX-DMM"


Frequency: up to 60kHz
