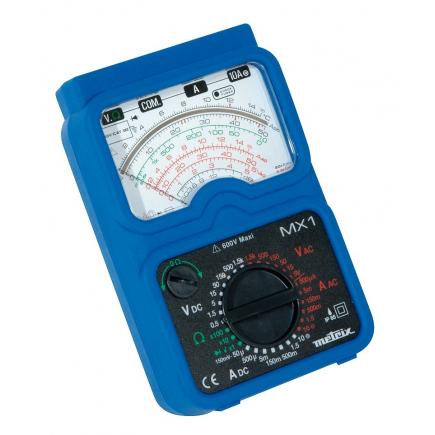

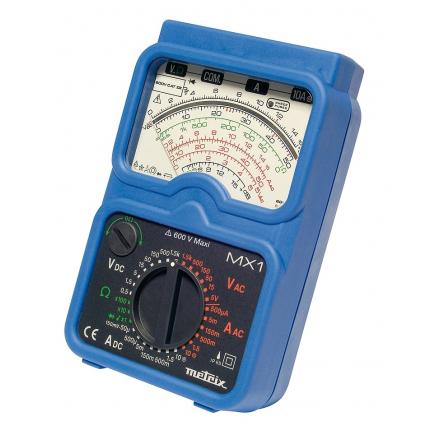

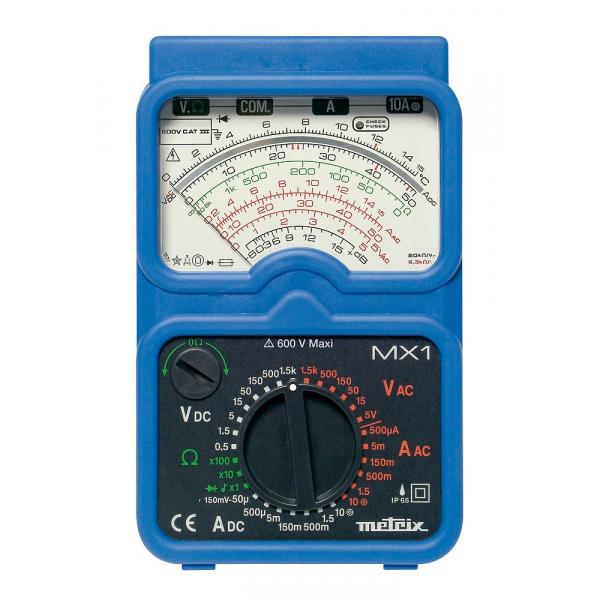

CHAUVIN ARNOUX MX1 - Analog multimeter MX1 in IP65 container with shockproof sheath
The MX 1 is an analog multimeter in an IP65 container with shockproof sheath.
Main features:
Accuracy / Impedance: 2% / 20kΩ / V.
AC voltage (6 ranges): from 5V to 1.500V.
Medium size.
Bandwidth: 16Hz to 1kHz.
DC current (7 ranges): from 50μA to 10A.
AC current (7 ranges): from 500μA to 10A.
Resistance (3 ranges): from 20kΩ to 2MΩ.
Continuity with beep sound.
Diode test.
dB: -6 to 66.
Dimensions: 155 x 98 x 40 mm.
Weight: 420 gr.
IP65 protection.
Electrical safety: EN 61010-1 600V Cat.III.
Main features:
Accuracy / Impedance: 2% / 20kΩ / V.
AC voltage (6 ranges): from 5V to 1.500V.
Medium size.
Bandwidth: 16Hz to 1kHz.
DC current (7 ranges): from 50μA to 10A.
AC current (7 ranges): from 500μA to 10A.
Resistance (3 ranges): from 20kΩ to 2MΩ.
Continuity with beep sound.
Diode test.
dB: -6 to 66.
Dimensions: 155 x 98 x 40 mm.
Weight: 420 gr.
IP65 protection.
Electrical safety: EN 61010-1 600V Cat.III.
- DC voltage (9 ranges): from 150mV to 1.500V
