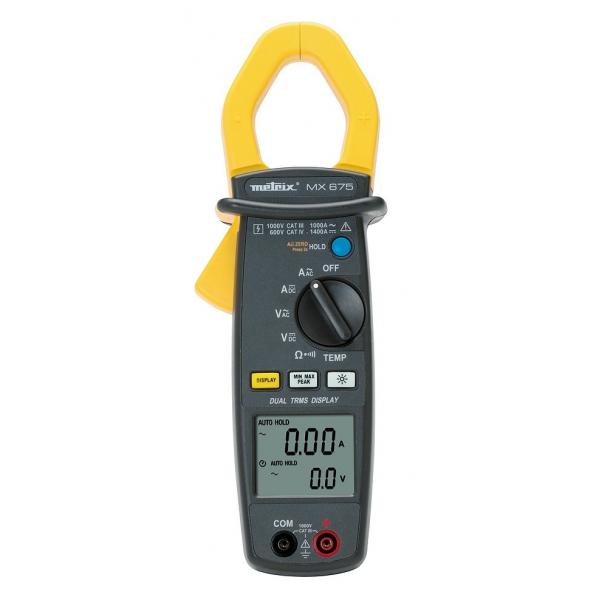

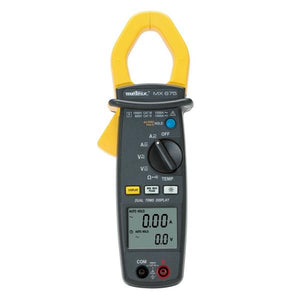

CHAUVIN ARNOUX MX0675 - MX 675 Two-display TRMS AC/DC multimeter clamp

The MX 675 combines the basic functions of an AC/DC multimeter and Hall-effect current clamp for measuring AC and DC currents up to 1,000 A.
Its 2 TRMS measurement channels enable it to display 2 values simultaneously on its large 10,000-count backlit display and the measurements are accurate whatever the waveform and type of the signal.


AC current: 100 / 1000 A
AC voltage: 1000 V
Accuracy: 1,5%L ± 5D
Clamping Ø: 40 mm
DC current: 100 / 1000 / 1400 A
DC voltage: 1000 / 1400 V
Frequency: 1 kHz / 10 kHz
Measures: TRMS
Readout: 10000 counts
Resistence: 1 kΩ / 10 kΩ
Sound continuity: Yes
Temperature: 1000 / 1200°C
