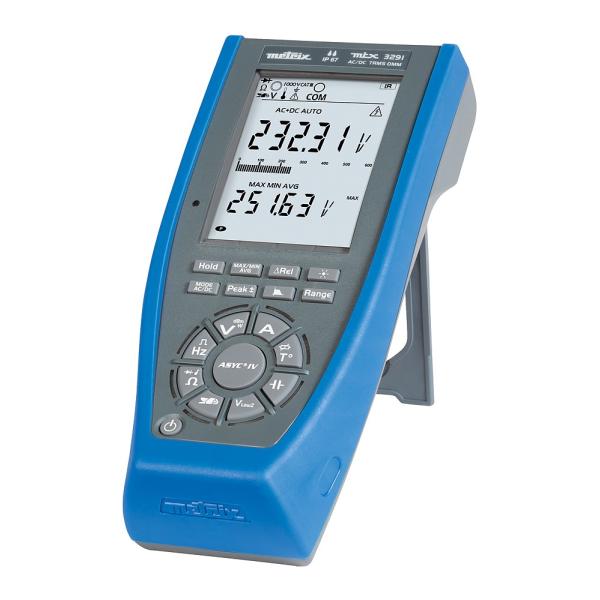

Large LCD display for viewing multi-parameters on a 7 x 52 mm backlit screen.
Analysis tools: Relative time stamped monitoring, Peak +/- and secondary measurements for an easy-to-use multimeter with illuminated digital keypad.
Optimized ergonomics: IP67 hermetic box, IEC 611 1 V CAT III / 6 V CAT IV safety test terminals, battery or NI-MH battery power supply (on external charger), contextual reminder of the connection to the screen.
Multiple quantities measured around the main function, relative measurement or direct current measurement using a clamp (mV output) by integrating the transformation ratio for an advanced multimeter.
USB communication using supplied SX-DMM software and SCPI programming commands.
The portable multimeters with digital display for the direct measurement of the main electrical quantities make use of an innovative design which makes them compact, robust, protected against bad weather and easy to handle thanks to the ergonomic studies carried out.

User-friendly multimeters:
Highly legible 70X52 mm LCD screen
Contextual recall of electrical connections on screen
Automatic current flow rate, single input up to 10A
Complementary measures to the main measure to facilitate the analysis
Time-stamped monitoring of MIN/MAX and AVG values, voltage and current peaks
SX-DMM software: allows real-time data processing on a PC

Other characteristics:
Protection class: IP67 suitable for outdoor use in all weather conditions and protected against dust
Power supply: 4 standard AA batteries or 4 Ni-MH batteries rechargeable with an external accessory HX0051B (optional)
Autonomy: up to 400 hours with standard batteries.


Bar graph: with central zero VDC and IDC
Measurement intervals: 5 measures per second
Readout: Dual display 60,000 points
Resolution: 0,001 mV - 0,01 mV - 0,0001 V
