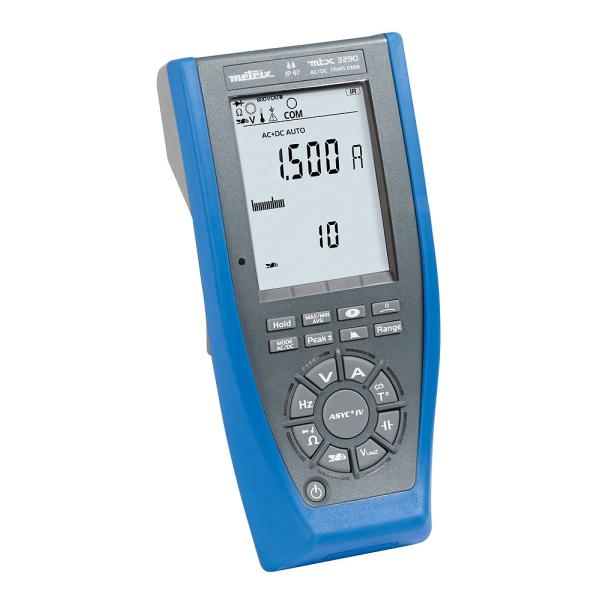

MTX3290 IP67 TRMS 20kHz digital multimeter.
Large LCD display for multi-parameter display on 7 x 52 mm screen.
A simple, basic multimeter with main function monitoring Min, Max, Avg (average) and peak +/- measurements with illuminated digital keypad.
Optimized ergonomics: IP 67 hermetic box, IEC 611 6 V CAT III / 3 V CAT IV safety test terminals, battery or NI-MH battery power supply (on external charger), and contextual reminder of the connection to the screen.
The portable multimeters with digital display for the direct measurement of the main electrical quantities make use of an innovative design which makes them compact, robust, protected against bad weather and easy to handle thanks to the ergonomic studies carried out.

User-friendly multimeters:
Highly readable 70 x 52 mm LCD screen
Contextual recall of electrical connections on screen
Automatic current flow rate, single input up to 10A
Complementary measures to the main measure to facilitate the analysis
Time-stamped monitoring of MIN/MAX and AVG values, voltage and current peaks

Other characteristics:
Protection class: IP67 suitable for outdoor use in all weather conditions and protected against dust
Power supply: 4 standard AA batteries or 4 Ni-MH batteries rechargeable with an external accessory HX0051B (optional)
Autonomy: up to 400 hours with standard batteries


Bar graph: with central zero VDC and IDC
Measurement intervals: 5 measures per second
Readout: Dual display 6,000 TRMS points
Resolution: 0,001 V - 0,01 V - 0,1 V
