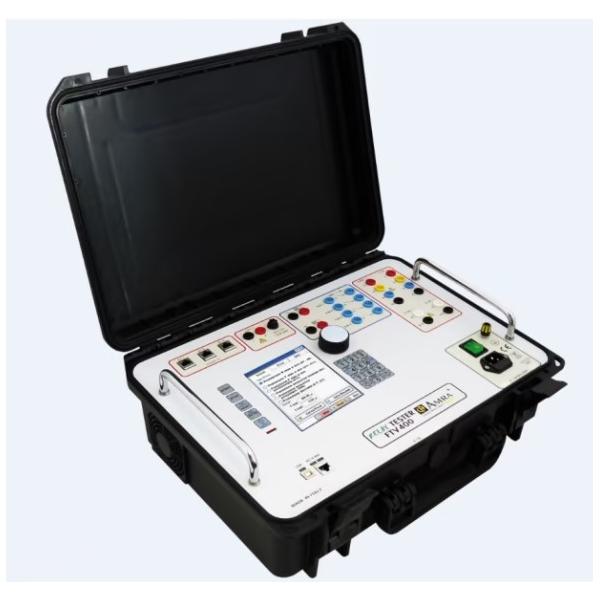

RELAY TesterFTV400 - SPI and SPG relay test box.
Protection relay verifier and certifier.
Instrument for automatic checks of interface protection systems (SPI) and general protections (PG) for systems connected to the MV/LV network.
Complies with the new CEI 0-21 (06-2012), new CEI 0-21, v1 (12-2012) and new CEI 0-16 (12-2012).
Execution of tests in automatic (sequence) or manual (programmable) mode.
3 independent AC voltage outputs adjustable up to 400V.
1 independent AC voltage output adjustable up to 130V.
1 independent DC voltage output at 110V aux.
3 switchable and adjustable AC current outputs up to 15A.
110mA-240AAC adjustable up to 1.5A.
Color graphic screen, local or remote control from pc.
USB interface for PC connection.
Report software and internal memory 500 measurements.
RJ45 connector low-level voltage outputs (option).


3 independent ac voltage outputs adjustable up to: 400V
