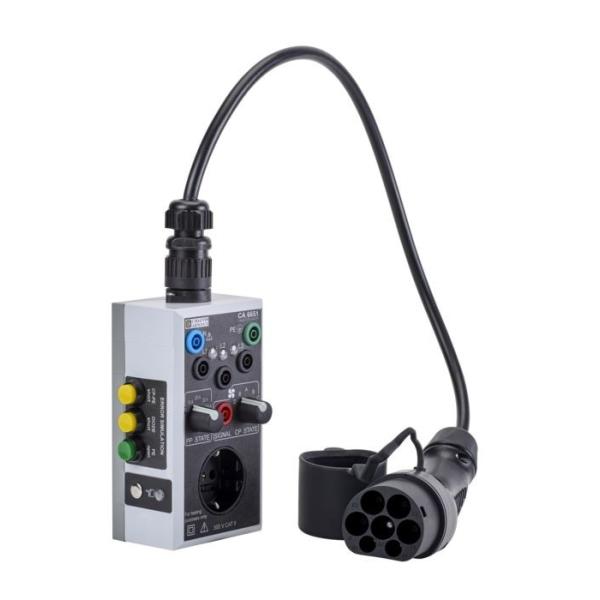

Specially designed for the verification of the charging columns of electric vehicles, the CA 6651 test adapter is very easy to use: interfacing in series with the terminal output, allows access to various measuring points on Type 2 sockets to perform all the necessary electrical tests.

The CA 6651 allows you to:
Perform a functional test to verify the presence of the phases and the connection between the protective conductor (PE) and the grounding
Verify the electrical safety of the charging columns for electric vehicles in conjunction with a multifunction controller (for example CA 6117, CA 6131, CA 6133 or MX 535)
Power supply test, grounding verification, RCD test, insulation measurement
Indication of the presence of phases L1/L2/L3 by means of 3 LEDs

The AC 6651 test adapter also controls the correct operation of the charging column by simulating all possible states of the electric vehicle: connected, not connected, charging, etc.
To ascertain the actual signal transmission between the column and the adapter, you need a HandScope-type oscilloscope (signal waveform, amplitude, pulse width, etc.).


Weight (Kg): 2,3
