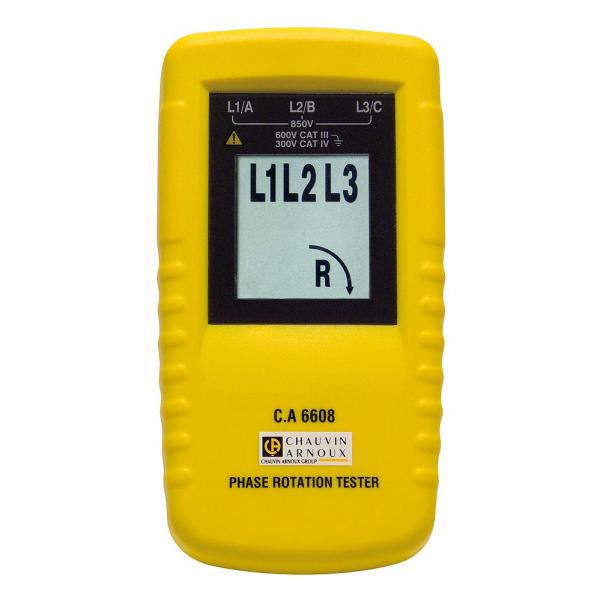

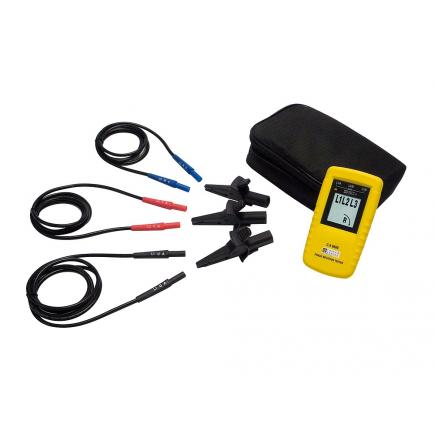

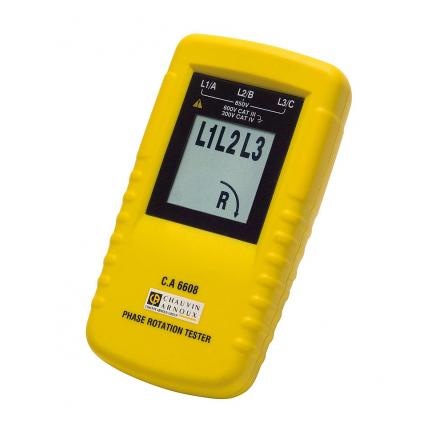

CHAUVIN ARNOUX - C.A 6608 Phase rotation tester with display and LED

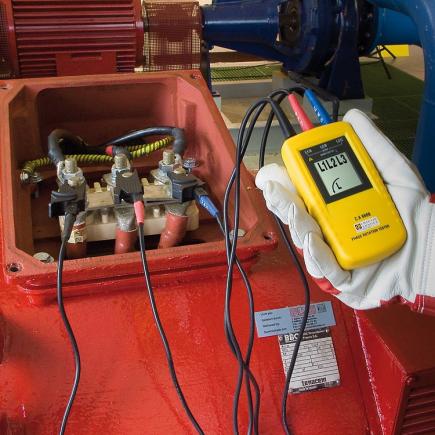

For installation, inspection and maintenance teams, the C.A 6608 phase rotation tester is an essential tool for identifying the order of the phases on an electrical installation and detecting any phase loss.
Identification of the phases makes it easier to ensure correct, safe wiring of your installations, thus preventing damage to the equipment connected to the three-phase network
The phase order is determined as soon as the cables are connected.
The results are displayed on an LCD screen.


Direction of rotation indication: A-B-C o B-A-C
Electrical safety: EN 61010-1 Cat III 600V - IP40
Frequency: from 15 to 400 Hz
Measurement range (phase-phase): from 40 to 850 VAC
Power supply: Self-powered
Visualization: Display + LED
