Highlights
Insulation and Continuity Tester for Special Applications
20 GΩ
Test voltage : 10 to 100 V - 1 V increments
Manual / Lock / Duration modes
Alarms, ∆REL
Continuity, Voltage, Resistance
Magnetic mounting

Description:
Ergonomics

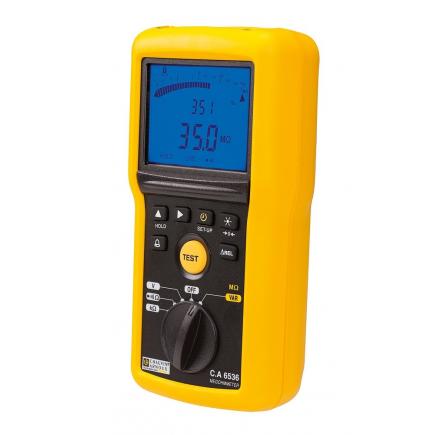

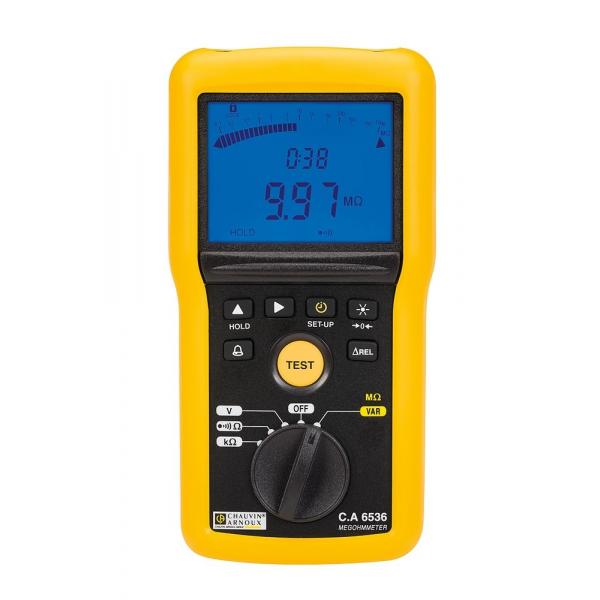

The new C.A 652x & C.A 653x insulation testers are compact, lightweight and simple to use, offering greater comfort for users:
Casing designed with 600V CAT IV safety and IP54 / IK04 protection for a comfortable grip in total safety with easy access to the TEST button, even when the user is wearing safety gloves
Magnetic stand for fixing the product on a metal surface so that users have their hands free when measuring and reading the result
Wide backlit screen with double digital display and logarithmic bargraph, secondary display showing the actual test voltage, the test current and the timer value, in addition to the value measured
Remote control with torch for error-free identification of the points of measurement, even in environments with poor lighting

Insulation tests
This new range is equipped with various insulation test voltages ranging from 10 V to 1 kV.
The dynamic range for insulation measurement extends up to 200 GΩ, remaining compliant with the IEC 61557* standard up to 2 GΩ.
In addition to the manual mode, there are also new insulation test modes such as Lock mode, Timer mode and calculation of the PI & DAR ratios.
