Description:

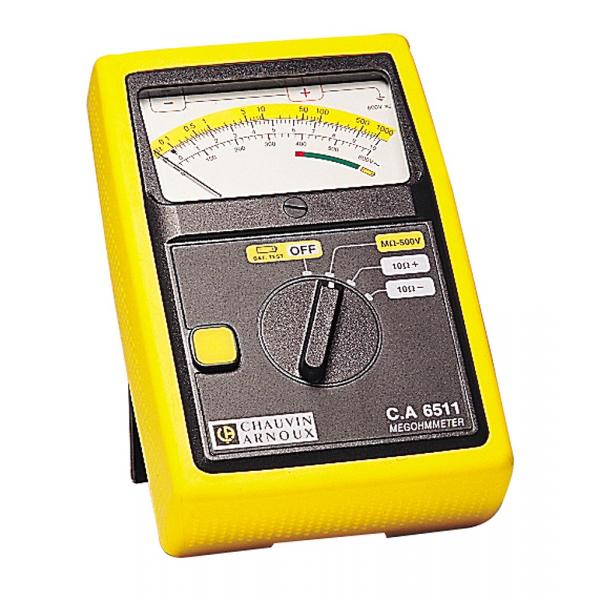

Analogue insulation tester at 500 V DC.
The C.A 6511 is an economical insulation and continuity tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations.

Functions and specifications:
AC voltage measurement: 0 to 600 V
Continuity measurement: -10 Ω to +10 Ω (I = 200 mA)
Automatic voltage absence testing by direct measurement
Single input on two colour-coded terminals
Easy reading of the indication and logarithmic scale
Power supply: 4 x LR6 1.5 V batteries
Compliant with IEC 61557
Electrical safety: IEC 61010 600V Cat III


Accuracy: ± 5 %
Measuring range: 0.1 - 1000 MΩ
Test voltage: 500 V
