Description:

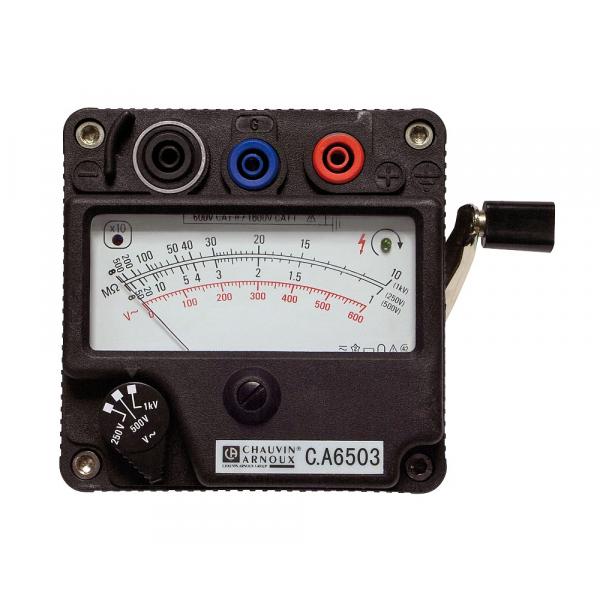

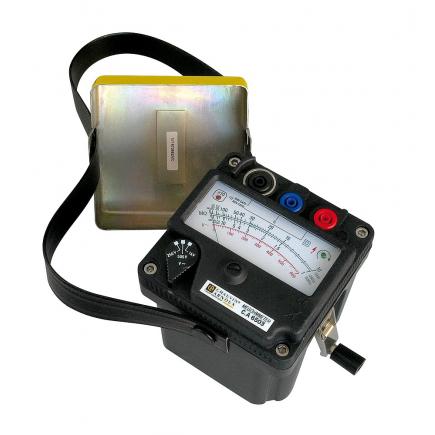

Hand-cranked portable insulation tester.
Portable, lightweight and compact, the C.A 6503 insulation tester can be used totally independently because it is powered by a magneto.
This all-terrain tool is ideal for use on industrial and residential sites, electricity distribution networks and telecommunications equipment.
It is suitable for a wide range of applications such as ensuring that electrical installations comply with the applicable standards, or carrying out preventive maintenance on cables, motors, circuit-breakers, transformers, etc.


Accuracy: ±2% ±2% ±2%
Measuring range: 2 ranges: 0 - 500 MΩ 2 ranges: 0 - 500 MΩ 2 ranges: 0 - 5000 MΩ
Test voltage: 250 VDC costant 500 VDC costant 1000 VDC costant
