The CA 6011 continuity tester has been specially designed for periodic testing of the protective earth conductors of electrical equipment, appliances and installations, linked in particular to the standards and regulations: IEC/EN 60364, NF C 15-100, VDE 100, etc.
These systematic, repetitive tests represent more than 80% of testing operations.
Particular care must therefore be taken to prevent them from becoming tiresome.

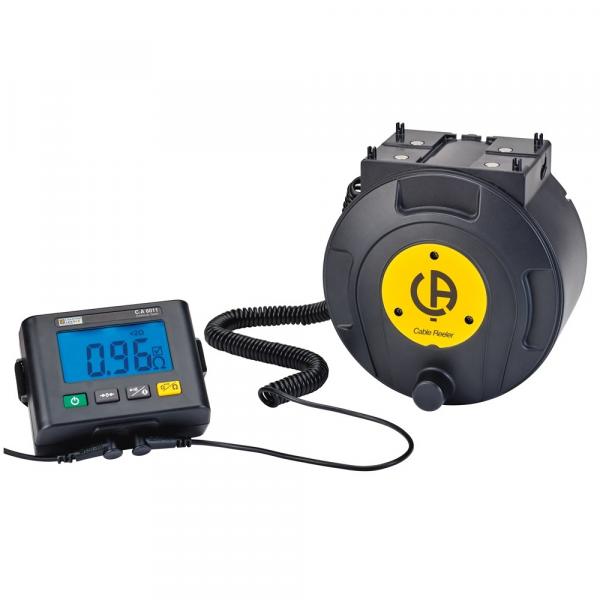

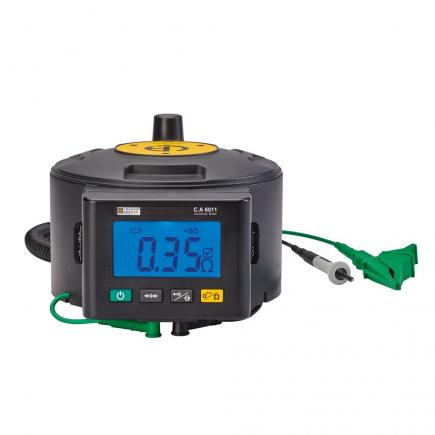

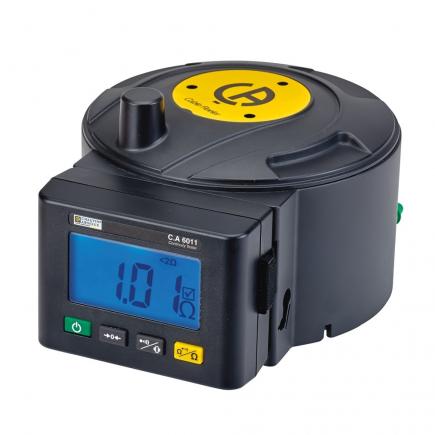

Due to its ergonomics and functions, the CA 6011 continuity tester with built-in reeling box fulfils this requirement by making it comfortable to use for the operator while ensuring peace of mind for our customers:
Large backlit display (the largest on the market)
Clear, intuitive indications: blue/red screen, simple symbols, audible alarm
Brand new function: a vibrator! which respects your customers' peace and quiet while resting your neck
Measuring unit which can be attached to the reeling box or detached as you choose!
4 buttons on the front panel to access all the functions directly
Long battery life: up to 30,000 measurements!
Weight ideally distributed across the body thanks to the shoulder strap and belt


Continuity Measurement current: 20mA with automatic polarity inversion
Continuity Measurement range: from 2,00Ω to 20,00Ω
Continuity Resolution: 10 mΩ
Continuity Voltage with open circuit: ± (4 VDC < U > 6 VDC)
Readout: 2000 counts with two-color backlight
Resistance Automatic shutdown: 10 min / can be deactivated
Resistance Autonomy: 30000 measurements
Resistance Compliance with standards: EN 61557 Parts 1 and 4, EN 61010-1, EN 61010-2-030
Resistance Continuity threshold: programmable 1Ω or 2Ω
Resistance Measurement current: 10mA
Resistance Measuring range: from 1,0Ω to 200,0Ω
Resistance Power: 4 batteries 1,5V AA/LR06
Resistance Resolution: 100mΩ
Resistance Test result indication: visual, sound and/or with configurable vibration
Resistance Voltage with open circuit: ± (4 VDC < U > 6 VDC)
