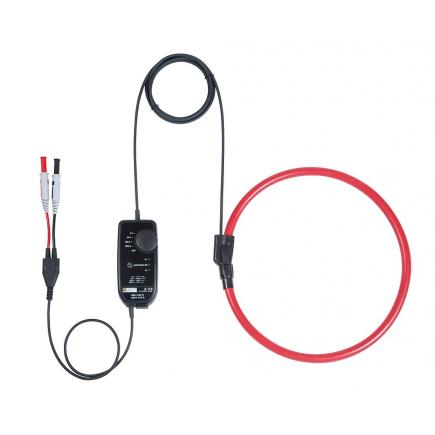

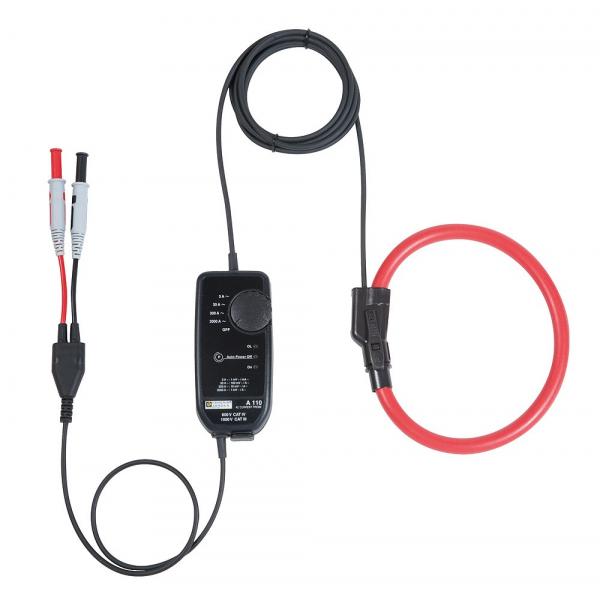

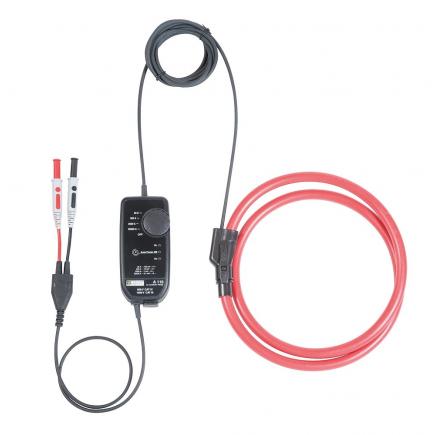

CHAUVIN ARNOUX - A110 AmpFlex Single-phase flexible current sensors IP67 1000 V CAT IV with measurements from 80 mA to 3 kA

The AmpFlex® A110 Series comprises 3 flexible sensor models for direct connection to any multimeter, wattmeter, logger, etc.
These flexible coils offer the following major advantages :
Their flexible, lightweight design means they can encircle one or more conductors, whatever their shape (cable, busbar, strand, etc.)
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for wattmetric measurements


Typical accuracy: ≤ 1 %
Voltage: 3 VAC
