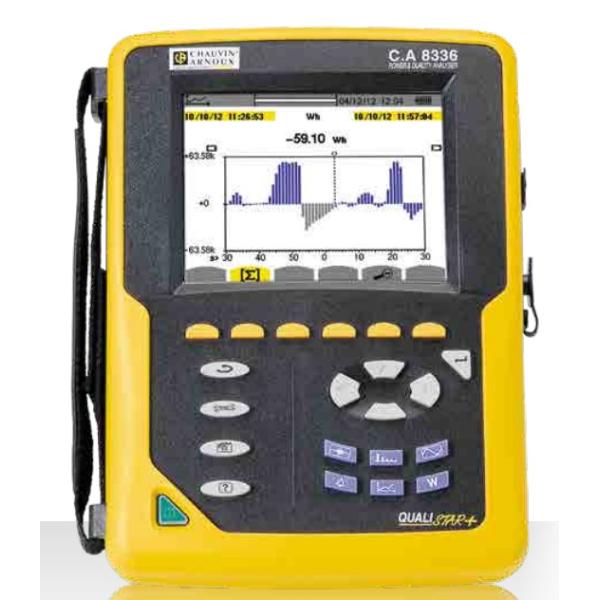

Promotion 8336 5V/4I network analyzer complete with nr. 4 MiniFlex MA193 flexible sensors.
Network and three-phase energy analyzer for power quality analysis and troubleshooting, supplied complete with nr. 4 MA193 current clamps.
Measurements, compliant with EN61.000-4-30, of AC+DC TRMS voltage and current, frequency, power, sizing of anti-harmonic filters, measurement of inrush current with inrush mode. Recording and detection of transients (78 us sampling), simultaneous alarms and waveforms.
Number of inputs: 5V / 4I with real-time vector representation.
TRMS voltage AC+DC: 2V to 1,000V and voltage ratio up to 500KV.
TRMS current AC+DC: according to the sensor used from 100 mA to 10 KA. Frequency: 40Hz to 69Hz.
Power parameters: W, VA, var, VAD, PF, DPF, COS PHI, TAN, PHI.
Energy: Wh, Varh, Vah, VADh. Harmonics and THD from grade 0 to grade 50.
Transient capture: up to 210.
FlicKer Pst and Plt.
Inrush mode on a time up to 10 minutes.
Min, Max, Peak recording.
Electrical safety EN61010 - 1.000V CAT. III and 600V CAT. IV.


TFT color display: 320 x 240 px
