6165 multifunction EN61439 + software.
Capacitive color touchscreen.
Automatic test sequences.
Storage of tests on memory card up to 32 GB.
HV dielectric test 5 kVAC/ 6 kVDC, continuity test 25 A, insulation 1.000V.
Leakage current by substitution, PE, differential and contact method.
External and internal discharge time up to 10 sec / 550 V peak.
Inputs / outputs for foot pedal, indicator lights, PC.
Compatible with TT, TN, IT 230V / 115V networks.

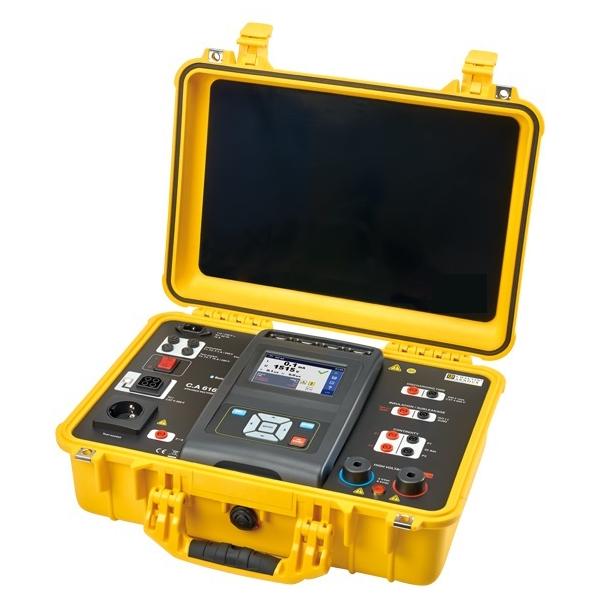

The 6165 test tool allows you to carry out all the necessary measurements to check the safety of portable electrical appliances, machines and switchboards.
It is therefore ideal for carrying out the tests required to certify the electrical safety of appliances as part of conformity checks at the end of production, for periodic checks or for maintenance.

The instrument allows you to carry out all the measurements and tests necessary to guarantee the conformity of electrical appliances:
Test Continuous 200mA, 4A, 10A, 25A
TRMS phase and leakage currents
Voltage / frequency
Replacement leakage current
Differential leakage current
Contact leakage current
Earth Leakage Current (PE)
Functional test with measurement of absorbed power
AC and DC dielectric test
Download time
Functional and visual inspection
Insulation resistance 50V / 100V / 250V / 500V and 1,000V
Powers (active, reactive and apparent) and THD

The MT Link PC software supplied facilitates the analysis of the measurement data, allowing:
Download of test results to PC to save them in a database and create reports.
Downloading test programs from PC to device to run predefined tests.
Definition of automatic test sequences.


Standard: EN61439
