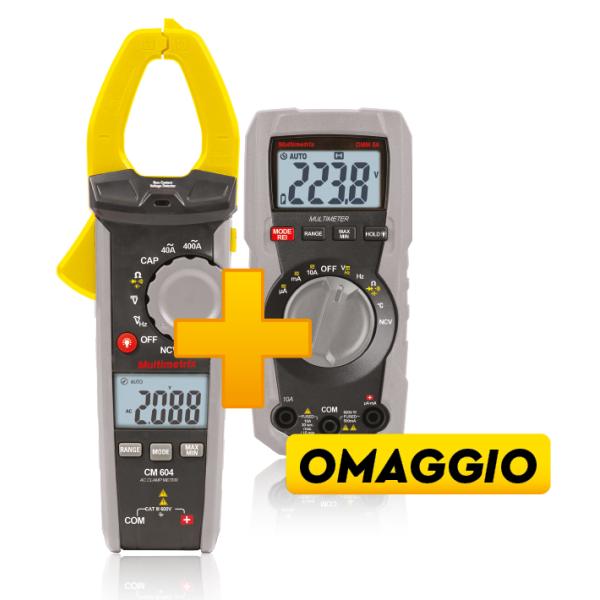

DMM 53

Display: 4000 Points
Courses: Automatic and Manual

I DC Ranges: 400 uA/4000 uA/40 mA/400 mA/10 A
Best Accuracy: 1%L + 5 pts
Best Resolution: 0.1 uA

I AC Ranges: 400 uA/4000 uA/40 mA/400 mA/10 A
Best Accuracy: 1 + 5 points
Best Resolution: 0.1 uA

V DC Ranges: 400mV/4V/40V/400V/600V
Best Accuracy: 0.5%L + 3 pts
Best Resolution: 0.1 uA

V AC Ranges: 4V/40V/400V/600V
Best Accuracy: 0.8%L + 5 pts
Best Resolution: 1 mV

Flow resistance: 400 O/4 kO/40 kO
Best Accuracy:0,8 %L + 5 pts
Best Resolution:0.1O

Continuity (With Buzzer): YES
Diode test: YES
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF
Temperature (K thermocouple): -20 to +1000°C
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/100kHz/1MHz/10MHz
Cyclic Ratio: 0.1 to 99.9%
Range selection: Automatic
Other Features: Backlight, DATA HOLD, Auto Power Off, Built-in Flashlight, NCV.
Power supply: 2 x 1.5V AA
Dimensions / Weight: 150 x 73 x 48 mm / 230 gr. (without battery)
Accessories Supplied: 1 set of 2 cables with red/black tip, 2 AAA/LR03 1.5V batteries
Display: 4000 Points

I AC Capacity: 40A/400A/600A
Best Accuracy: 2.5%L + 5pts
Best Resolution: 10mA
V DC ranges: 4V/40V/400V/600V
Best Accuracy: 0.8% + 3pts
Best Resolution: 1mV
V AC Ranges: 4V/40V/400V/600V
Best Accuracy: 1%L + 5pts
Best Resolution: 1mV
Range Resistance: 400O/4kO/40kO/400kO/4MO/40MO
Best Accuracy:1 %L + 5 pts
Best Resolution:0.1O
Continuity Threshold 40 O
600V RMS protection
Diode Test: Yes
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF
Temperature (K thermocouple): -20 to +1000°C
Other Features: MAX
Power supply : 3 x 1.5V AAA/LR03
Dimensions/Weight: 206x79x43 mm / 200 gr.
Electrical Safety: 600 V Cat. II - 300 V, Cat. III (EN61010) - CE

Accessories Supplied: 1 carrying bag, 1 set of 2 cables with red/black tip, 3 1.5 V AAA/LR03 batteries, thermocouple K.


Number of pieces: 2
