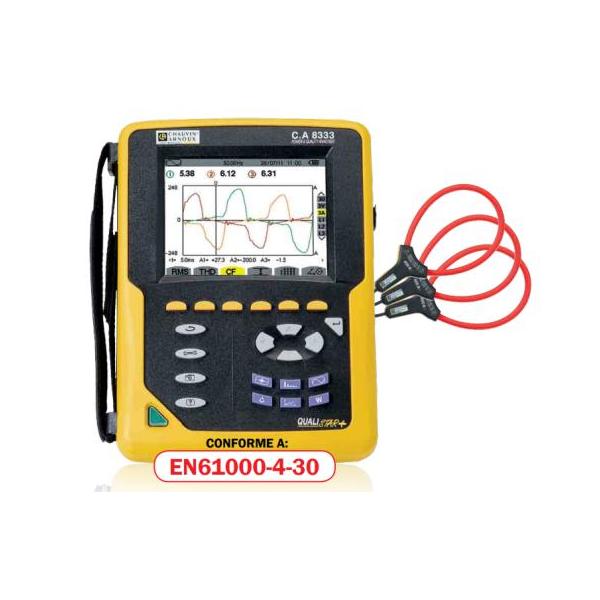

Promotion 8333 4V/3I network analyzer complete with nr. 3 MiniFlex MA193 flexible sensors.
V/I input ratio programming (MV networks).
4 or 5 voltage inputs, 3 or 4 current inputs (depending on the model).
AC/DC voltage up to 1,000V.
AC/DC current from 5mA to 10kA (depending on the sensor).
Harmonics up to the 50th degree.
Programmable alarms and oscilloscope function.
Transients (78 us) and Flicker (Pst and Plt).
Inrush function on 4 periods.
USB communication and micro SD Card memory (2 GB).
Software for real-time communication, analysis with a PC.
Safety EN 61010 600V CAT. IV.


TFT color display: 320 x 240 px
