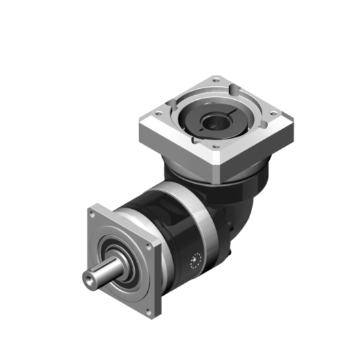

The PNIIR series is a righ angle economy NEMA flanged output precision planetary gearbox with accuracy down to less than 10 arc minutes. The PII series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.

Output torque
T2N : 16 Nm - 459 Nm
Ratios
1-stage :  3/4/5/7/10
2-stage :  15/16/20/25/30/35/40/50/70/100
Low backlash
1-stage : ≤12-10 arcmin
2-stage : ≤14-12 arcmin
high efficiency
1-stage : ≧ 93%
2-stage : ≧ 90%
Easy mount
Low Noise
Compact structure
