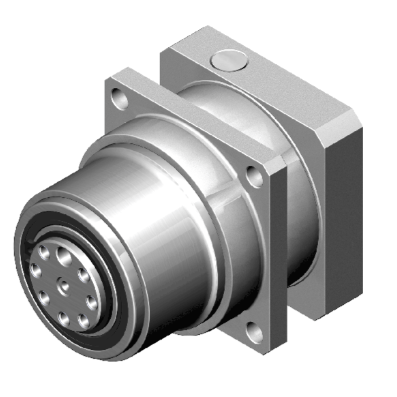

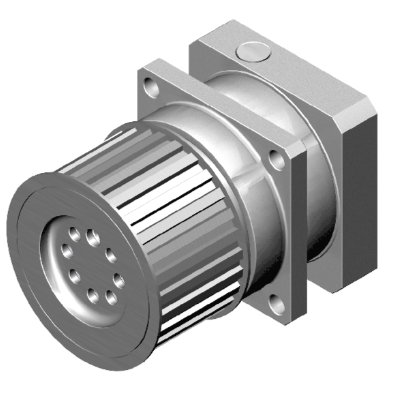

The PL series is an economy rotary flange pulley drive output precision planetary gearbox. Standard profile pulleys are available for all sizes. Accuracy is down to less than 6 arc minutes. The PL series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.



Output torque
T2N : 27 Nm - 143 Nm
Ratios
1-stage :  3/4/5/7/10
2-stage :  12/15/16/20/25/30/35/40/50/70/100
Low backlash
1-stage : ≤7-6 arcmin
2-stage : ≤9-8 arcmin
High Efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy Mount
Low Noise
Compact Structure
