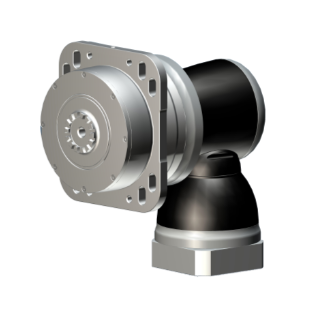

The MGHCK Series is a High Performance platform right angle planetary gearhead based on the MGH Series that features carburized, case-hardened and ground helical gearing. The MGHC output contains an additional planet gear for up to 25% more torque capability and is fitted with our patented curvic coupling tooth flange. High moment load capacity is achieved through reinforced taper roller bearings to support the output. Hypoid right angle gearing allows for ratios up to 5,500:1 and spiral bevel gearing permits ratios as low as 4:1. Ideal for high radial load and thrust applications and a perfect complement to Apex Rack and Pinion Systems.

Features:
• Enhanced Axial and Radial Load
• Easy Installation and Adjustment
• High Torque
• High Torsional Rigidity
• Long-Term Persistence of Low Backlash
• Long Service Life
• High Efficiency / Optimized Inertia Moment
• Identical Input-Output Rotating Direction with
Hypoid Right-Angle K-Series
• Standard Flange or Curvic Output
