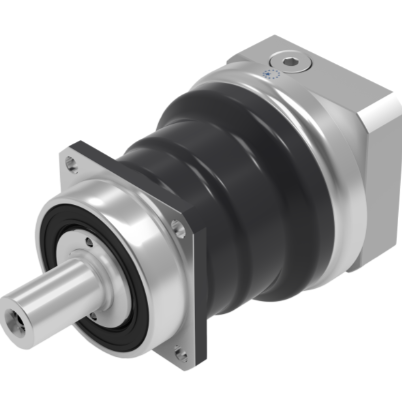

The Apex MF series is an alloy steel high precision in line servo gearbox. Based on the AFH series, the MF series provides similar performance with slightly less accuracy; With 100% optimized helical case hardened and ground planet gears provide high torque capability, highest precision and increased wear resistance for high cycle rates. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.

Output torque
T2N : 24 Nm - 4290 Nm
Ratios
1-stage : 3 / 4 / 5 / 6 / 7 / 10
2-stage : 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100
60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤3 arcmin
2-stage : 4≤arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
