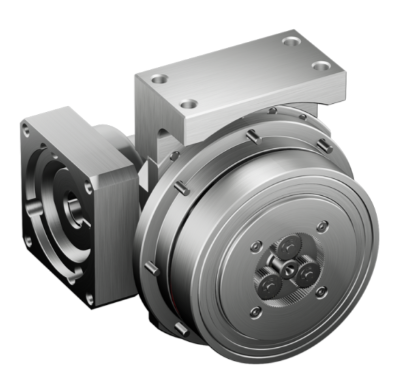

The right angle verison of the GV series, the GVR maximizes space savings with your design by moving the motor section 90 degrees out of the drive axis line.

With a unique planetary configuration, the GV Series achieves a highly compact gear drive for wheels in AMR / AGV applications. Mobile robots have unique requirements for components, and the wheel drive is no exception. Compact structure, high torque, high radial load, low weight all relate to overall performance of the robot. The GV series hits and delivers on all points. Designed for mass production, the GV is mountable to any motor and includes the frame mounting bracket and wheels. Wheels are offered in different durometer hardness to fine tune to your application surface.

• Special Design for AGV Application

• Minimized Gearbox Length for High Reduction Ratio Optimizing Space Arrangement inside AGV

• Ring-Gear Housing Rotation

• High Torque / High Driving Transmission

• High Efficiency / Optimized Inertia Moment

• High Torsional Rigidity

• High-Strength Bearing and Wheel Hub Supporting High Vertical Load Capacity

• Long Service Life
