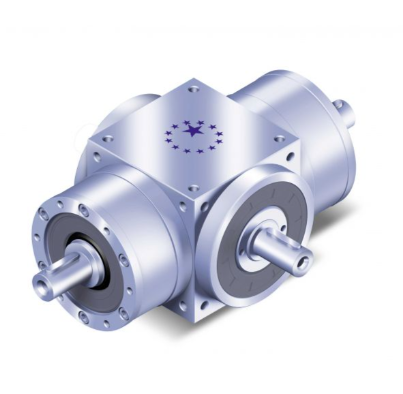

The Apex AT-LM/RM series is a right angle spiral bevel gearbox with three shafts joined by three spiral bevel gears. Suitable for servo and power transmission/line shafting applications, the AT-LM/RM provides a single input, dual right angle ouput shafts with opposite rotation sense.

Output torque
T2N : 12 Nm - 3,200 Nm
Ratios
1-stage : 1
Low backlash
1-stage : ≤6arcmin
high efficiency
1-stage : ≧ 98%
Easy mount
Low Noise
Compact structure
