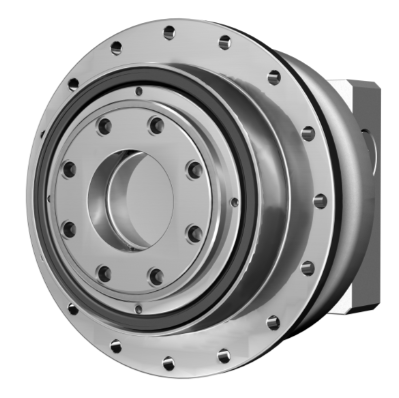

The AP Series is a high precision rotary flange style planetary gearbox with less than 1 arc minute backlash. Case Hardened and ground gearing provide high accuracy and high wear resistance for the gear train. The addition of a fourth planet gear increases torque capacity up to 29% Compact structure provides high torsional rigidity, taper roller bearing support provides high axial and moment load capacity. NEW larger sizes available - AP 285 / AP355 / AP450

Output torque

T2N : Up to 13,875 Nm
Frame Sizes (mm)

110/140/200/255/285/355/450
Ratios

1-stage : 5.5
2-stage : 22 / 27.5 / 38.5 / 55
2-stage : 88 / 110 / 154 / 220
Lowest Backlash - High Wear Resistance

1 / 2 / 3-stage : ≤1 arcmin
High Efficiency

1-stage : ≧ 97%
2-stage : ≧ 94%
2-stage : ≧ 92%
Easy mount
Low Noise
Compact structure
