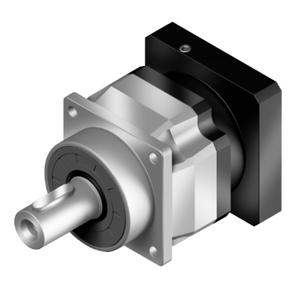

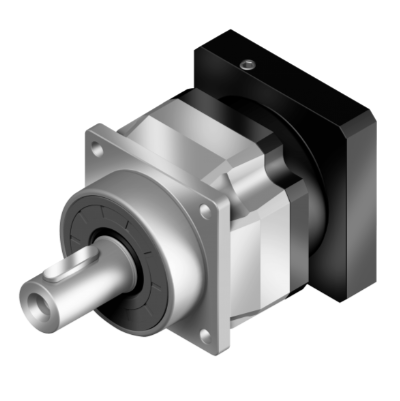

The Apex AFX series brings speed and continuous capability to the AF series. Low friction output bearing and low friction input and output sealing provides lowered startup / no load running torque, and lower heat generation.

Output torque
T2N : 14 Nm - 2000 Nm
Ratios
1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage : 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 45 / 50 /
60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
