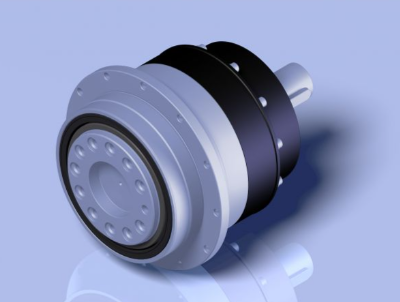

The Apex ADS series features a specially designed input shaft with key and treaded hole. Easy to drive via timing belt pulley or coupling. It has been specifically created to increase design flexibility and space saving for motor mounting. It is ideal for highly dynamic cyclic duty or continuous running application.

Output torque
T2N : 14 Nm - 2000 Nm
Ratios
1-stage : 4 / 5 / 7 / 10
2-stage : 16/21/31/61/91
Low backlash
1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
