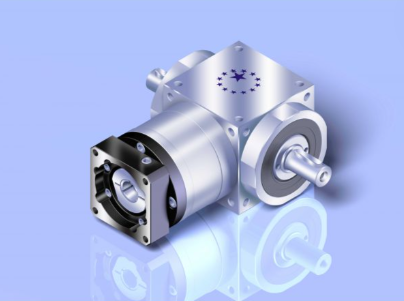

The Apex AT-FL series is a right angle spiral bevel gearbox with dual output shafts and motor flange input configuration. High radial load capacity and high precision make the AT-FL series suitable for servo applications as well as power transmission solutions.

Output torque
T2N : 12 Nm - 3,200 Nm
Ratios
1-stage : 1/1.5/2/3/4/5
2-stage : 7/10/15/20/25/35/50
3-stage : 75/100/125/150/200/250/350/500
Low backlash
1-stage : ≤6arcmin
2-stage : ≤8arcmin
3-stage : ≤10arcmin
high efficiency
1-stage : ≧ 98%
2-stage : ≧ 94%
3-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
